WANTED Dodge D interior parts needed

[747mopar]

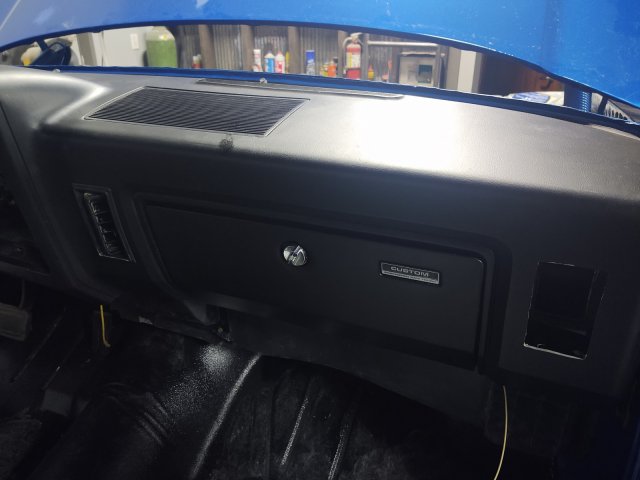

I'm converting this truck to A/C and need an instrument bezel with the A/C vents. Here's a picture of what I have (non A/C).

Also need one more dash vent.

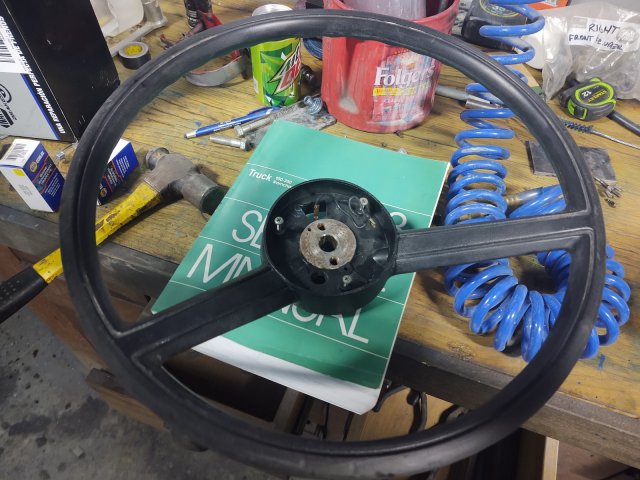

Last, I need the steering wheel center.



[Polara_500]

Lemme check



[volaredon]

Wanna sell the non AC bezel?



[Polara_500]

Far from perfect NOS, but pretty nice used I think. The bright trim around the openings is getting a bit weak.

Does have one broken tab on the back.

Maybe 40 plus the ride?



[747mopar]

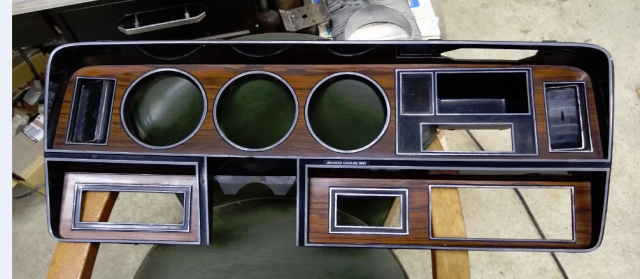

Far from perfect NOS, but pretty nice used I think. The bright trim around the openings is getting a bit weak.
View attachment 18243

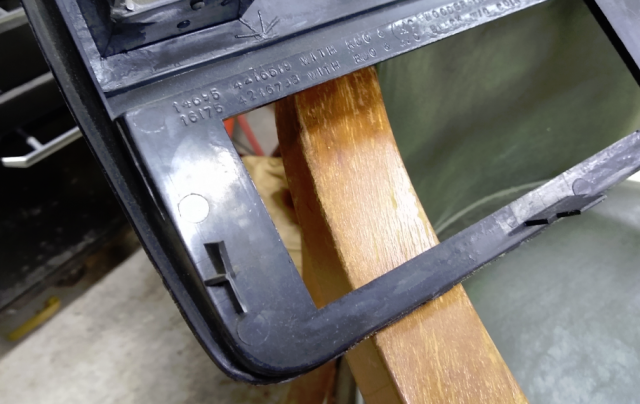

Does have one broken tab on the back.
View attachment 18244
Maybe 40 plus the ride?

Any A/C vents for the dash, I'm missing one. How's the wood grain on your dash? Looks good in the picture, I'm sure pealing it off if it's bad would be fun lol. $40 doesn't sound bad, I'm not worried about trim, easy enough to repaint, same goes for the tab. Anything you can help me with, figure we can ship everything together if so.

I also need the link that connects both rear parking brake cables to the forward cable if you have one. I assume nothing on a horn button?



[747mopar]

Wanna sell the non AC bezel?

I won't be needing it so why not. I'll look it over a little closer but I don't remember there being any cracks or broken pieces. What sounds fair to you?



[Polara_500]

The dash vent I'd have to take out of a complete dash, so no, no extras. Horn button, I'm not positive which one that wheel takes - I kinda sorta think I know and I may have one, but I have to figger out where it went, although if you have a pic of a correct one it'd be nice. Park brake coupler, should be one somewhere. The wood grain on the dash is bold and bright and I didn't notice any damage to it.



[7mopar]

Not that it matters because it will fit. But that would be replacing an older style benzol with a newer type.



[747mopar]

Not that it matters because it will fit. But that would be replacing an older style benzol with a newer type.

I robbed a bunch of parts from an 89, doesn't seem to be any difference, from the pictures they look identical other than the woodgrain.



[Polara_500]

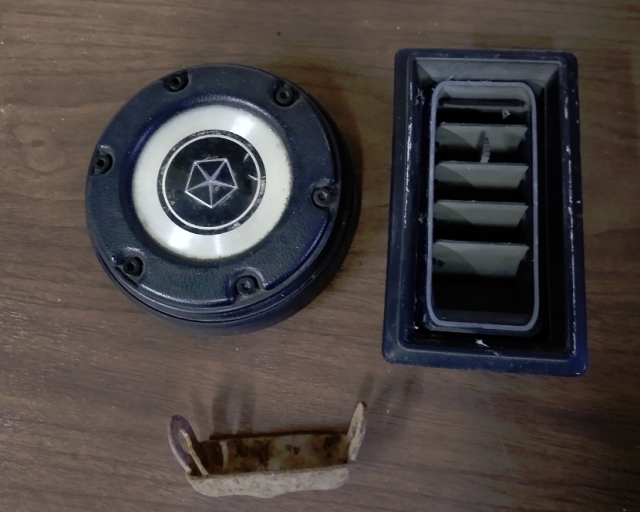

Found the horn button I was thinking of, if it's correct you're missing more bits from the wheel as it doesn't mount from the perimeter. I do have a dash vent and part of the emerg brake bits - I think there's the rest of it somewhere but dunno just where at the moment. (Heh - just ask Scott @LocuMob - he'll tell you it's a miracle I found anything.)



[7mopar]

82 doesn't have the little compartment above the radio.



[747mopar]

82 doesn't have the little compartment above the radio.

I saw that but can't remember what was there since mine has a blank hole, I'll look tonight.



[747mopar]

Found the horn button I was thinking of, if it's correct you're missing more bits from the wheel as it doesn't mount from the perimeter. I do have a dash vent and part of the emerg brake bits - I think there's the rest of it somewhere but dunno just where at the moment. (Heh - just ask Scott @LocuMob - he'll tell you it's a miracle I found anything.)

I've got what I believe is the rest, I just have everything apart at the moment to go through the column.. blast, paint and lube. There's a chrome ring, plastic part with springs and the ground wire and a plate that goes under the nut.. I'll confirm with my service manual that I have everything else.

When you get a chance post some pictures and give me a combined price. Thanks.



[Polara_500]

The horn button didn't come from a wheel like yours but I kinda think they interchange, it's right at 4.75 inches across the outside edges. The only bit I can find for the p/b coupler is that little bracket.

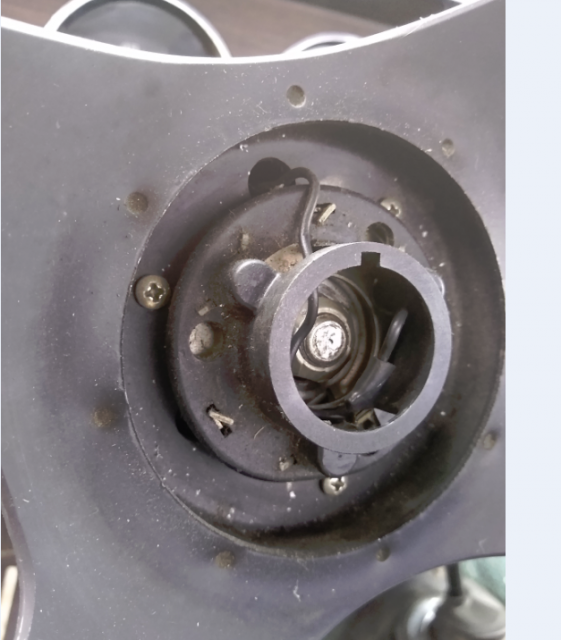

This pic shows the different horn contact ring that is what locks the horn button onto the wheel.



[marty mopar]

what year is the truck?????????



[747mopar]

what year is the truck?????????

1983



[marty mopar]

1982-83 part book

4216 736 1 FACEPLATE, w/o Radio,w/o A/C, Low Line
4216 735 1 w/Radio,w/o A/C
4216 734 1 w/o Radio,w/A/C looks like you need this or...................see below
4216 733 1 w/Radio,w/A/C this one ....................see below
PREMIUM & MID LINE
4216 518 1 w/A/C,w/o Radio
4216 519 1 w/A/C,w/ Radio
4216 516 1 w/o Radio,w/o A/C
4216 517 1 w/Radio,w/o A/C

NOS MOPAR 4216734 dash face plate 4216514 W/radio & A/C | eBay

Find many great new & used options and get the best deals for NOS MOPAR 4216734 dash face plate 4216514 W/radio & A/C at the best online prices at eBay! Free shipping for many products!

www.ebay.com

81-93 DODGE RAM CHARGER CUMMINS GAUGE CLUSTER BEZEL WITHOUT AC 4216733 | eBay

CUMMINS GAUGE CLUSTER BEZEL WITHOUT AC 4216733. PART # 4216733. We specialize in parts for Camaro and Firebird's.

www.ebay.com

1984-85 part book


1 FACEPLATE, Instrument Panel
Black
04216881 1 w/o A/C
04216882 1 w/A/C
Woodgrain
04216880 1 w/A/C
04216879 1 w/o A/C

1986-87 part book

FACE PLATE, Instrument Panel
Black
w/o A/C
04216881 1 1986
04363040 1 1987
w/A/C
04216882 1 1986
04363042 1 1987
Woodgrain
w/A/C
04216880 1 1986
04363038 1 1987
w/o A/C
04216879 1 1986
04363036 1 1987



[Polara_500]



[747mopar]

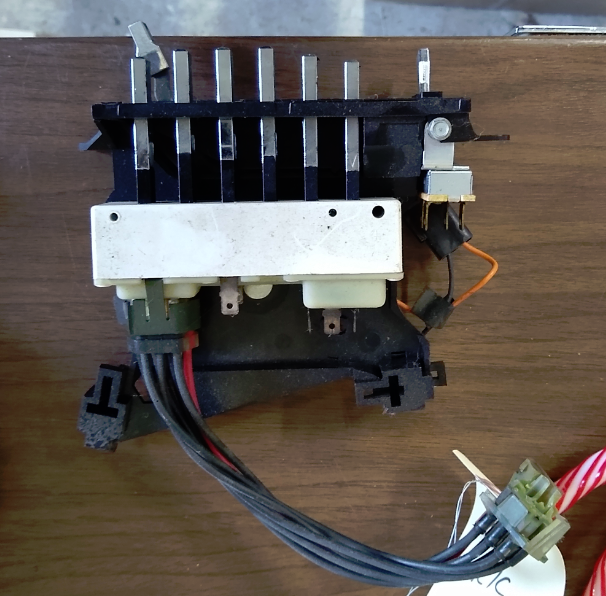

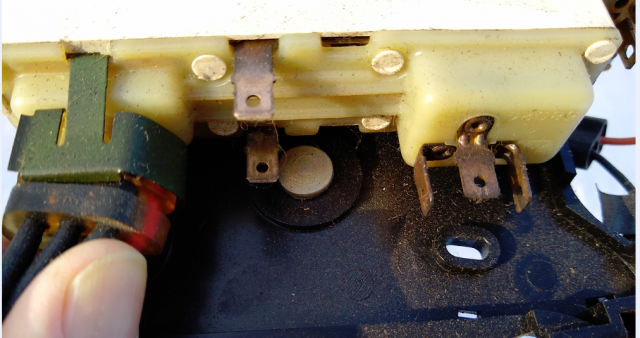

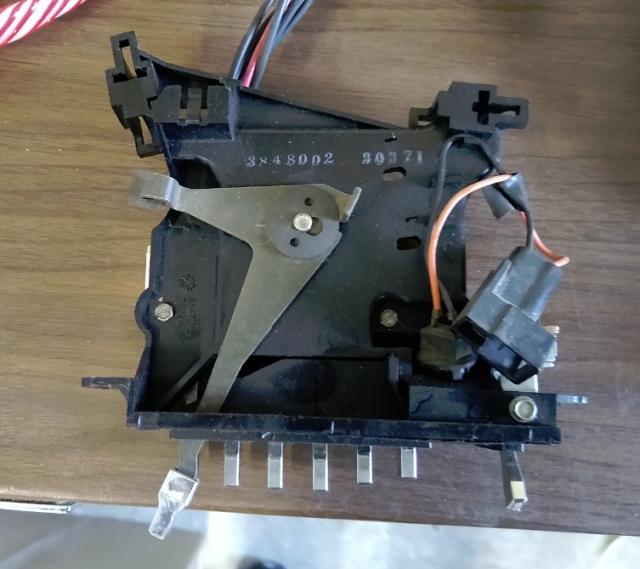

How do all of the electrical terminals look and feel? The reason I'm looking for one is mine has a loose and discolored terminal, it has gotten hot before.



[Polara_500]

All snug, but a little warm in the past.......
